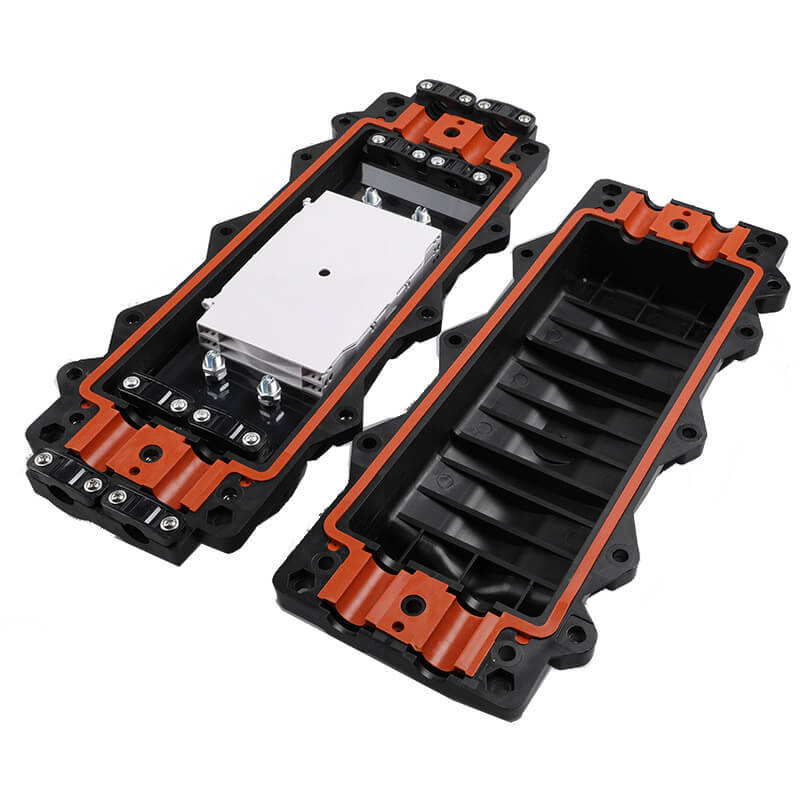

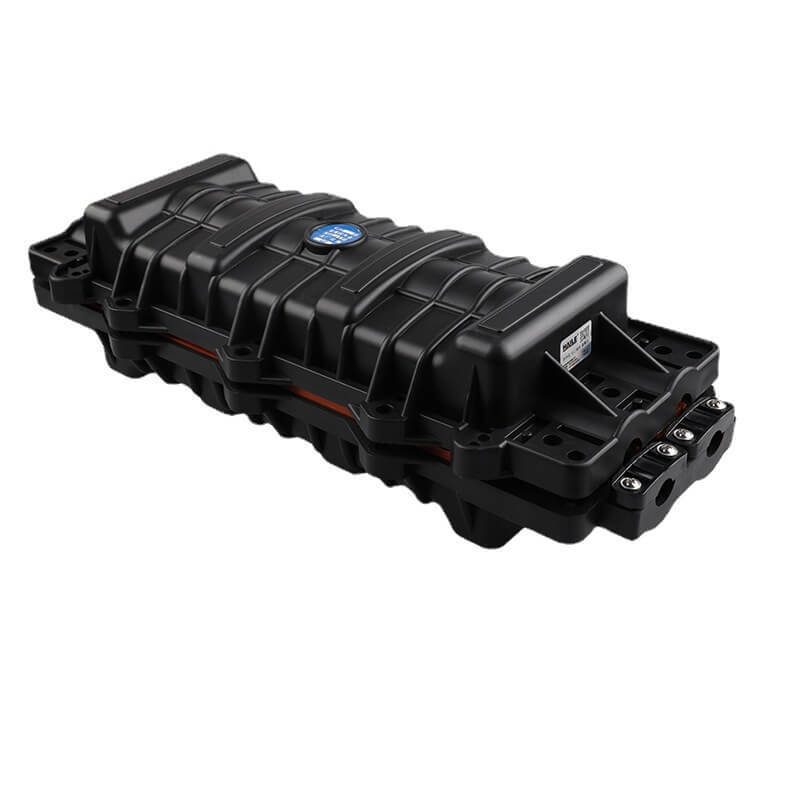

2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range

2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range
2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range
2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range

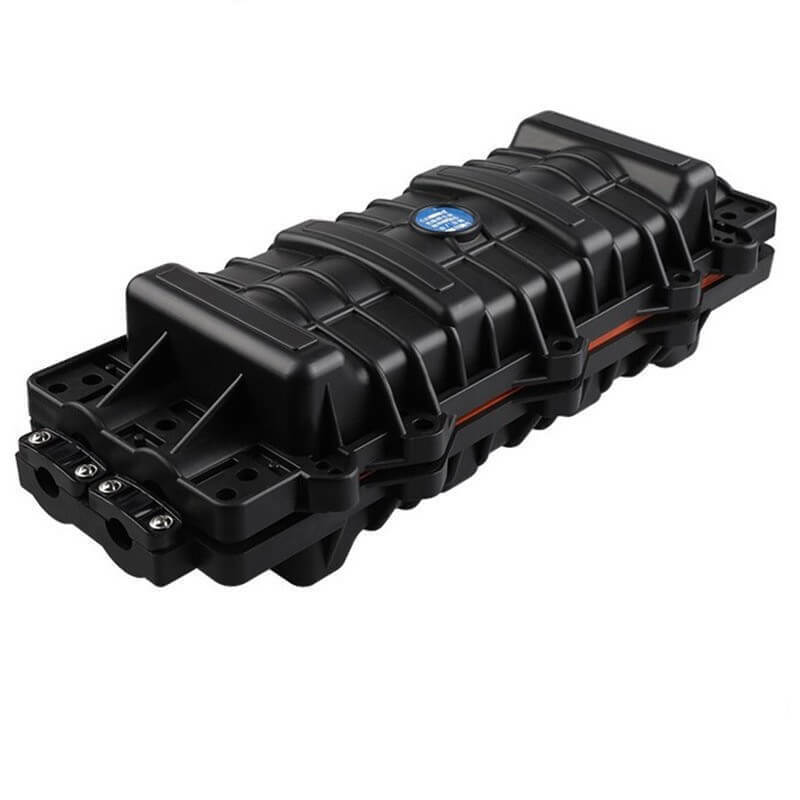

Grande immagine :  2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100
Tempi di consegna: 7-15 giorni
Termini di pagamento: T/t
Capacità di alimentazione: 1000 pezzi per 10 giorni
Contatto

2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range

Descrizione

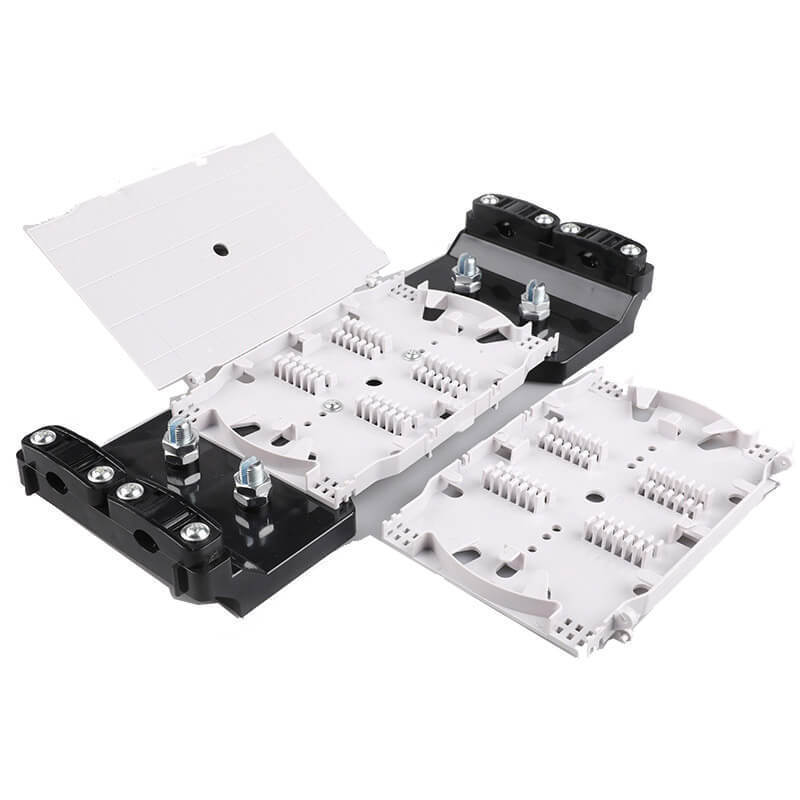

Alloggio: 1 set Vassoio di giunzione in fibra ottica (FOST): max. 4 pezzi (mazzi) max.4 pezzi (nastro)
Fondazione: 1 set Contrassetto di sigillo: 1 set
Nastro dell'isolamento: 1 rotolo Sigillo: 1 rotolo
Evidenziare:

2 In 2 Out Fiber Optic Splice Closure

,

12 Cores To 120 Cores Horizontal Fiber Closure

,

-40℃ to +65℃ Temperature Range Fiber Splice Enclosure

2 In 2 Out Horizontal Fiber Optic Splice Closure 12 Cores To 120 Cores Fiber
A Horizontal Fiber Optic Splice Closure is a protective shell designed to house and protect fragile splices where two or more fiber optic cables are joined. Its horizontal designation refers to its typical shape and mounting orientation: generally cylindrical (like a long tube) and installed horizontally on a cable strand, within a duct, or on a flat surface like a pole or wall.
Specifications
Outside dimension (LxWxH) 470mm*180mm*125mm
Weight (excluding outside box) 2.6kg
Number of inlet/outlet ports 2 (pieces) on each side (total 4 pieces)
Material PP+ABA
Temperature ranges -40℃ to +65℃
Key Functions
  • Protection: Shields fiber splices from environmental hazards like moisture, dust, chemicals, and mechanical stress (impact, crushing, tension).
  • Organization: Provides a structured, manageable way to store and organize spliced fibers and excess cable slack (loop storage).
  • Maintenance & Access: Offers a re-enterable point for network technicians to test, troubleshoot, or reconfigure splices as needed.
Accessories
2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 0
Applications
  • Aerial Networks: Most common application, mounted on the messenger strand.
  • Underground Networks: Installed in manholes, handholes, or buried directly.
  • FTTH (Fiber to the Home) Access Points: Used as a distribution point to split a feeder cable into multiple distribution cables heading toward homes.
  • Long-Haul and Metro Networks: Protecting splices along main trunk lines.
2 In 2 Out Horizontal Fiber Optic Splice Closure for 12 Cores To 120 Cores with -40℃ to +65℃ Temperature Range 1
