PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

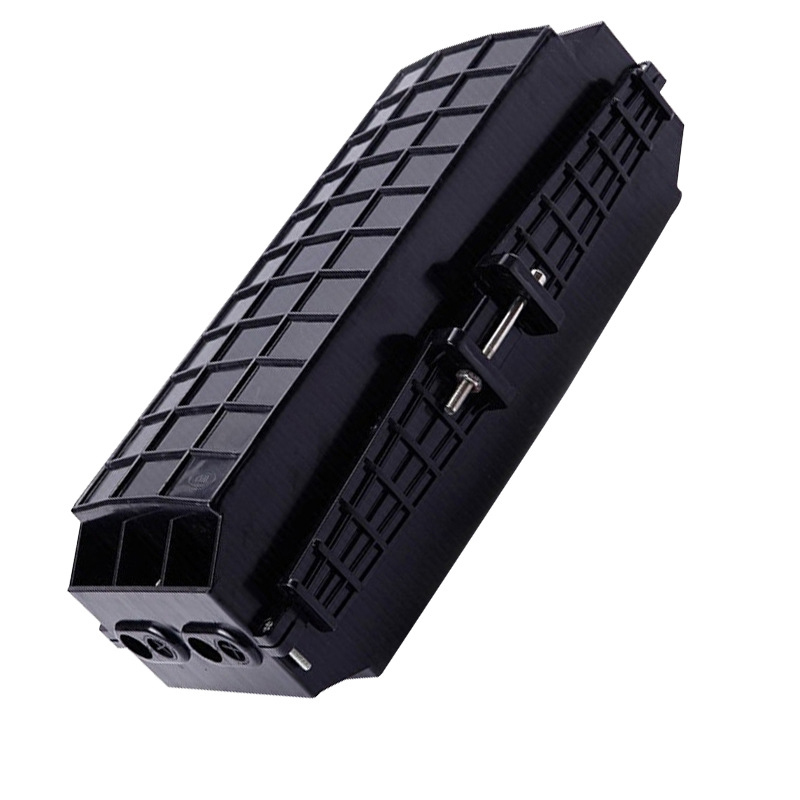

Grande immagine :  PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100pcs
Tempi di consegna: 7-15 giorni
Termini di pagamento: T/t
Capacità di alimentazione: 1000 pezzi per 10 giorni
Contatto

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Descrizione
Materiale: PC PC/ABS Materiale di tenuta: Gomma termoplastica
Metodo di assemblaggio: Aereo, interrato direttamente, con tubazioni, montaggio a parete, tombino Dimensione: 420(L)×150(L)×180(A)mm
Peso netto: 2 kg Temperatura: -20 ℃ ~ 45 ℃
Evidenziare:

48 Cores Fiber Optic Enclosure

,

4 In 4 Out Fiber Splice Closure

,

420x150x180mm Fiber Optic Enclosure

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type
A FOSC (Fiber Optic Splice Closure) is a protective, re-enterable housing used in fiber optic networks to provide a safe environment for splicing, branching, storing, and protecting fiber optic cables. Think of it as a rugged, weatherproof junction box for delicate fiber connections. The term "FOSC" is actually a brand name from CommScope (formerly from TE Connectivity / Tyco Electronics), but it has become a genericized term—much like "Kleenex" for tissues—used to describe many similar fiber splice closures from various manufacturers.
Specifications
Body Material PC PC/ABS
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 420(L)×150(W)×180(H)mm
Net Weight 2KG
Temperature -20℃~45℃
Size
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions 0
Features
  • Protection: Shields fragile fiber splices and excess fiber (slack) from environmental hazards like:
    • Moisture and Water
    • Dust and Dirt
    • Extreme Temperatures
    • Mechanical Impact and Crushing
    • Rodents and other pests
  • Splicing Point: It is the primary location where two fiber optic cables are joined together (spliced), either permanently (fusion splice) or with connectors (mechanical splice).
  • Cable Management: Provides an organized way to store and manage splice trays and the excess fiber loop, which is critical for future repairs or re-routing.
  • Access and Re-entry: Unlike a simple enclosure, FOSCs are designed to be easily opened and re-sealed, allowing technicians to add, remove, or repair splices throughout the network's lifecycle.

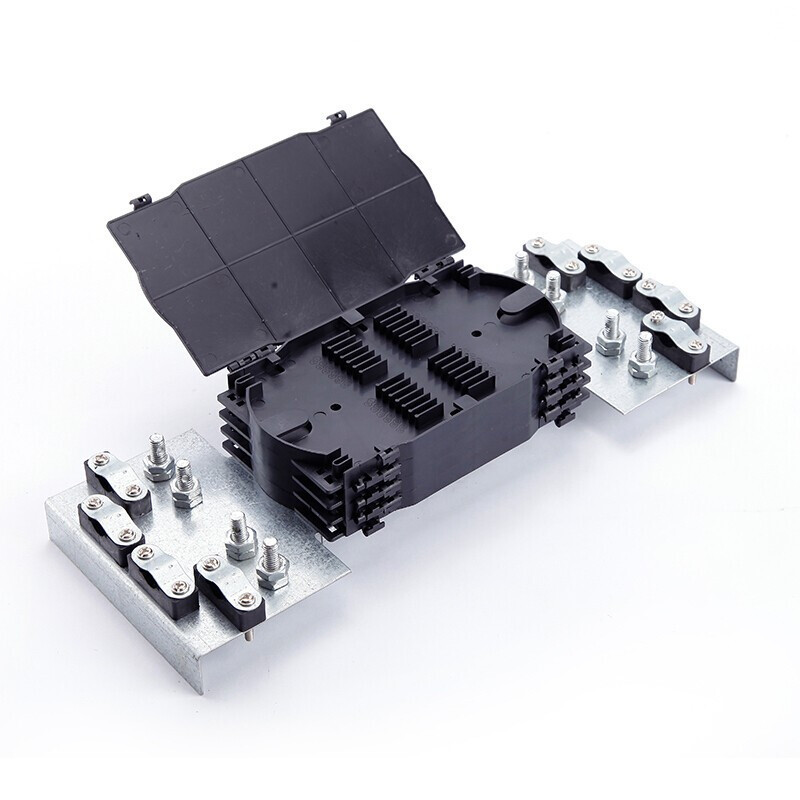

Accessories
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions 1
