96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application
96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application
96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Grande immagine :  96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Numero di modello: FOSC-D4B-H
Termini di pagamento e spedizione:
Quantità di ordine minimo: 200 pezzi
Tempi di consegna: 7-15 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 1000 pezzi per 10 giorni
Contatto

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application

Descrizione
Dimensione esterna: 472 mm × 193 mm Peso (esclusa scatola esterna): 3000 g ̇ 3600 g
Numero di porte di entrata/uscita: 4+1 pezzi in generale Diametro del cavo in fibra: Φ8mm~Φ20mm
Capacità del FOSC: Bunchy:24-96 (core), Ribbon: fino a384 (core) Vassoio di giunzione per fibra ottica (FOST): 4 vassoi (mazzo e nastro)
Evidenziare:

96FO Capacity Fiber Optic Splice Closure

,

4+1 Ports Fiber Optic Splice Enclosure

,

Outdoor Application Fiber Joint Closure

24-96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof
96FO Fiber Optic Vertical Splice Enclosure IP65 Waterproof Dustproof

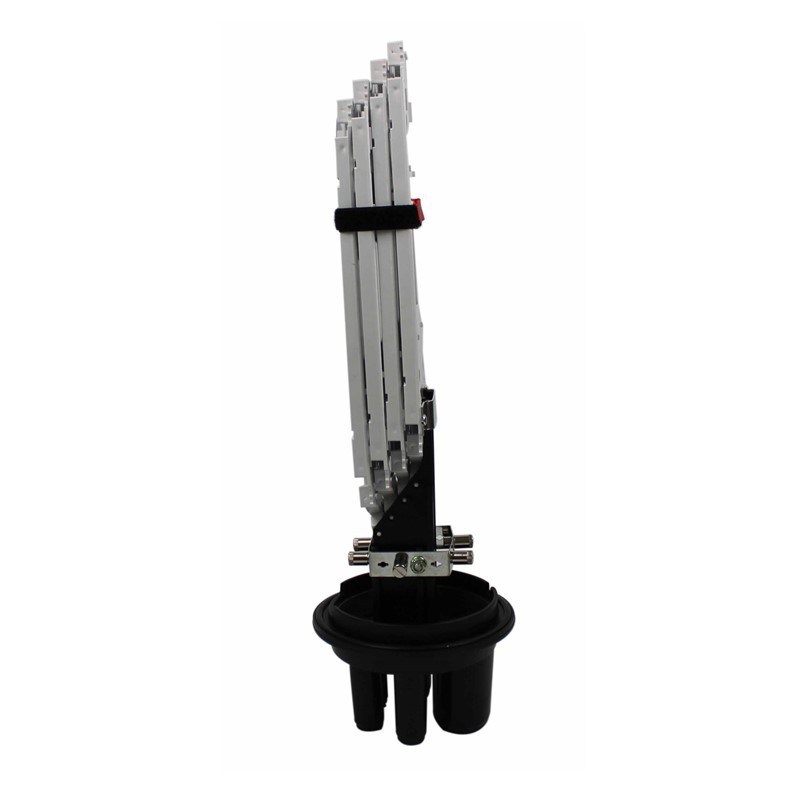

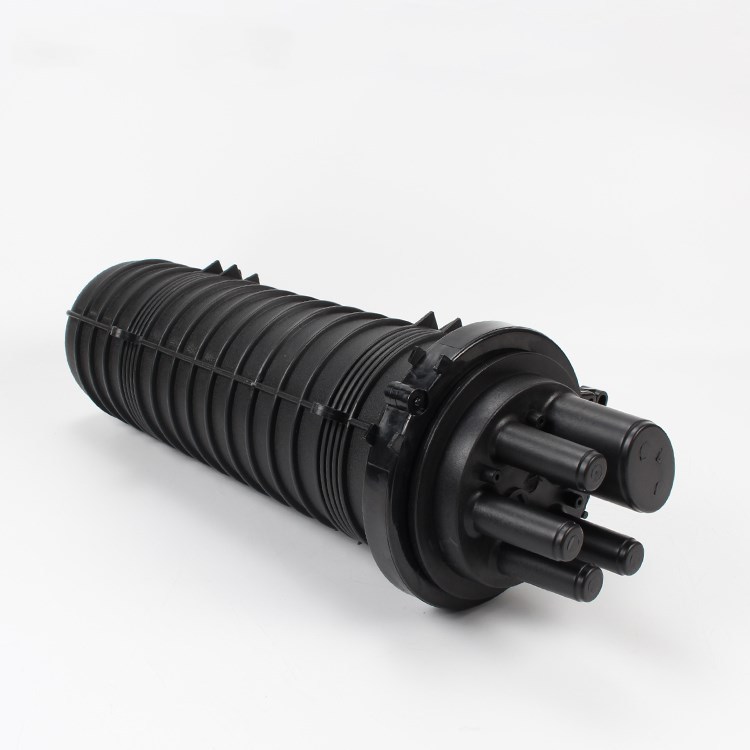

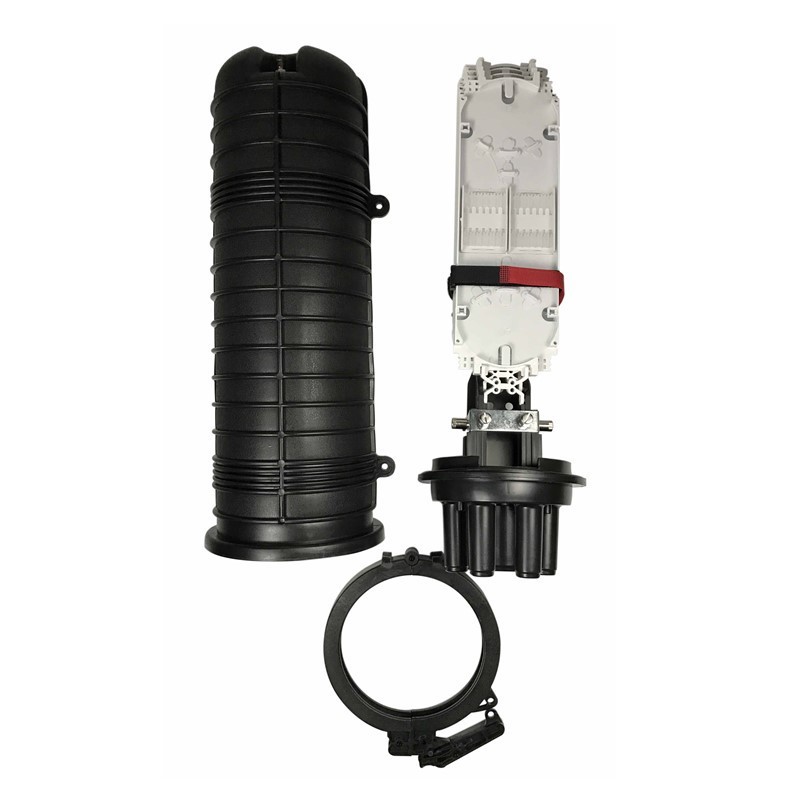

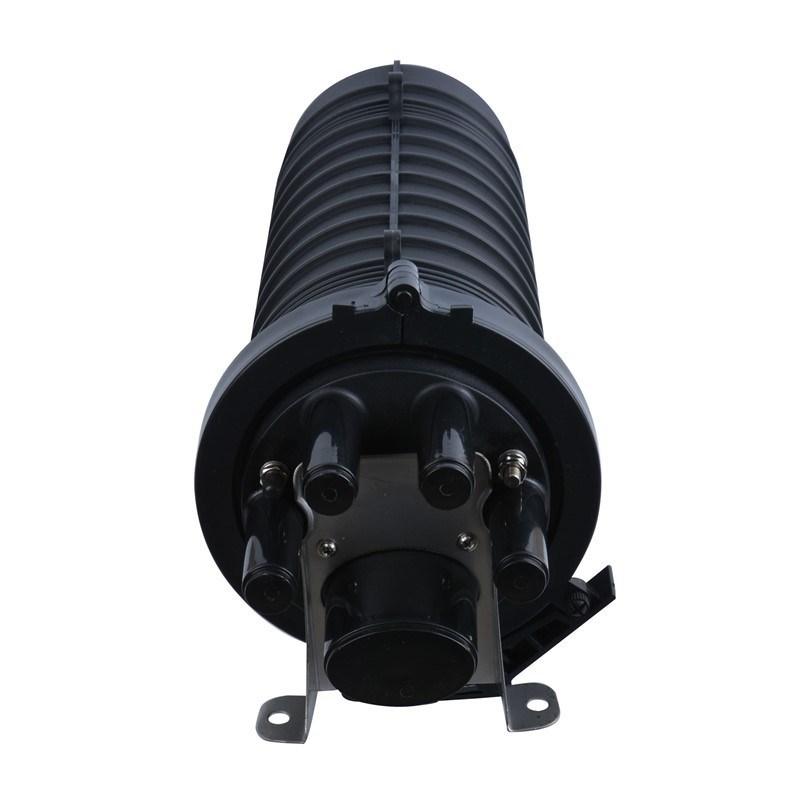

96 Core Optic Splice Joint Closure Dome-Vertical Types (1 in 4 out) is designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in both direct connection and splitting connection configurations, this enclosure is suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, this closure features enhanced sealing requirements including sealing rings and air valves.

Specifications
Splice tray count 4pcs
Splice capacity for each tray 24FO
Total Splice capacity 96FO
Number of inlet/out ports 4+1 pieces (standard)
Weight (excluding outside box) 3000g - 3600g
Applications

Ideal for pole and wall mounting applications:

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 0

Strand overhead installation:

96FO Capacity Fiber Optic Splice Closure with 4+1 Ports for Outdoor Application 1
Installation Guide
  1. Open the closure
  2. Determine length of fiber cable to be fixed and stripped inside FOSC
  3. Strip off protective coats of fiber cable and fiber
  4. Separate fiber cores and prepare work prior to fixing fiber cable
  5. Fix reinforced core, and pyrocondense, fix and seal fiber cable
  6. Splice fibers
  7. Install heat shrinkable protective sleeve and house fibers
  8. Check up comprehensively
  9. Assemble FOSC housing and fix FOSC

Prodotto Tag:

outdoor fiber splice enclosure,

fiber splice case,

cable splice enclosure
