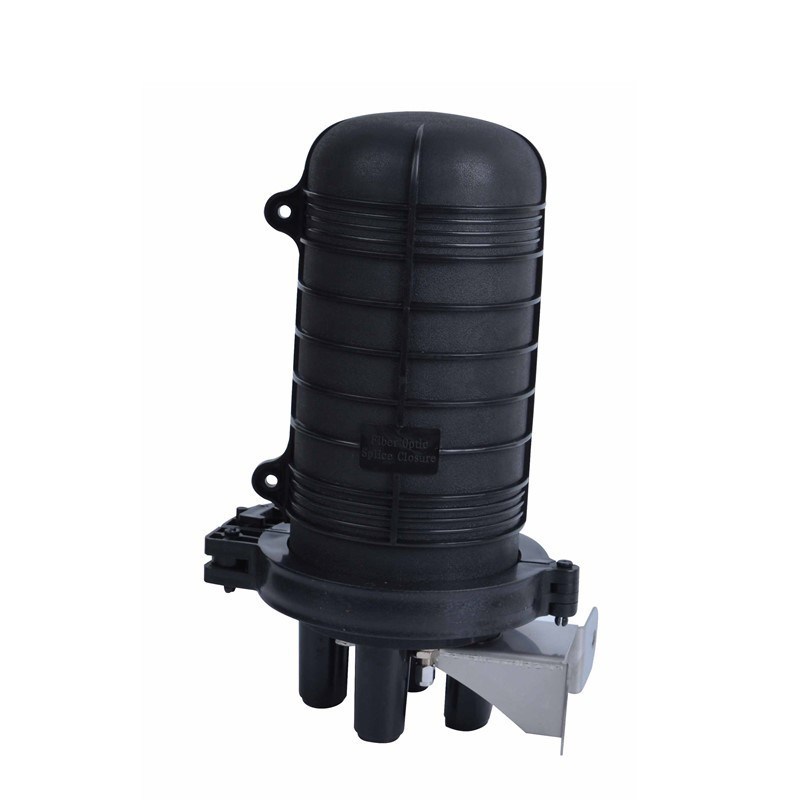

48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure
48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure
48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Grande immagine :  48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Termini di pagamento e spedizione:
Quantità di ordine minimo: 200 pezzi
Tempi di consegna: 7-15 giorni
Capacità di alimentazione: 1000 pezzi per 10 giorni
Contatto

48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Descrizione
Dimensioni esterne (max.): 300×Ø180mm Porte circolari e diametro cavo (max.): 3×Ø16mm
Cable di porta ovale (massimo): 1×Ø25 o 2×Ø21 Conteggio vassoi di giunzione: 4 pezzi
Capacità di fusione per ogni vassoio: 6/12FO Splice totale: 48 FO
Evidenziare:

48 Cores Fiber Optic Closure

,

1 In 3 Out Fiber Optic Closure

,

IP65 Waterproof Fiber Optic Closure

48 Cores Cap-Type Vertical Heat-Shrink Joint Fiber Optic Closure 1 In 3 Out
Product Description

A cap-type joint closure is a specialized enclosure designed for protecting fiber optic cable splices or connections in telecommunications and data transmission systems. It features a cap-shaped structure that secures and seals the joint area, ensuring reliable performance in various environments.

Specifications
Outside Dimensions (Max.) 300*Ø180mm
Circular ports and cable dia. (max.) 3*Ø16mm
Oval port can cable dia. (max.) 1*Ø25 or 2*Ø21
Splice tray count 4pcs
Splice capacity for each tray 6/12FO
Total Splice 48 FO
Key Features
  • Protective Sealing: Adopts IP65 or higher waterproof and dustproof design, shielding internal splices from moisture, dust, and corrosion.
  • Compact Structure: Cap-style design enables easy installation and space-saving layout, suitable for aerial, duct, or direct burial applications.
  • Durable Material: Typically made of high-strength engineering plastics (e.g., PC, ABS) or metal, resisting impact, UV radiation, and extreme temperatures.
  • Easy Operation: Equipped with snap-on or threaded locking mechanisms for quick opening and closing during maintenance or re-splicing.
48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 0
Applications
  1. Fiber optic communication networks (backbone, access, and FTTH systems).
  2. Outdoor and indoor cable connection points requiring environmental protection.
  3. Industrial control systems, monitoring networks, and data center cabling.
48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure 1
