1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting
1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting 1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting 1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting 1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Grande immagine :  1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Termini di pagamento e spedizione:
Quantità di ordine minimo: 100pcs
Tempi di consegna: 7-15 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 1000 pezzi per 10 giorni

1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Descrizione
Evidenziare:

1 In 3 Out Ports Fiber Optic Splice Closure

,

48 Cores Dome Fiber Optic Closure

,

Heat Shrinkable Fiber Optic Joint Closure

1 In 3 Out Ports Dome Fiber Optic Heat-Shrink Closures 48 Cores
1 In 3 Out Ports Dome Fiber Optic Heat Shrinkable Closures 48 Cores

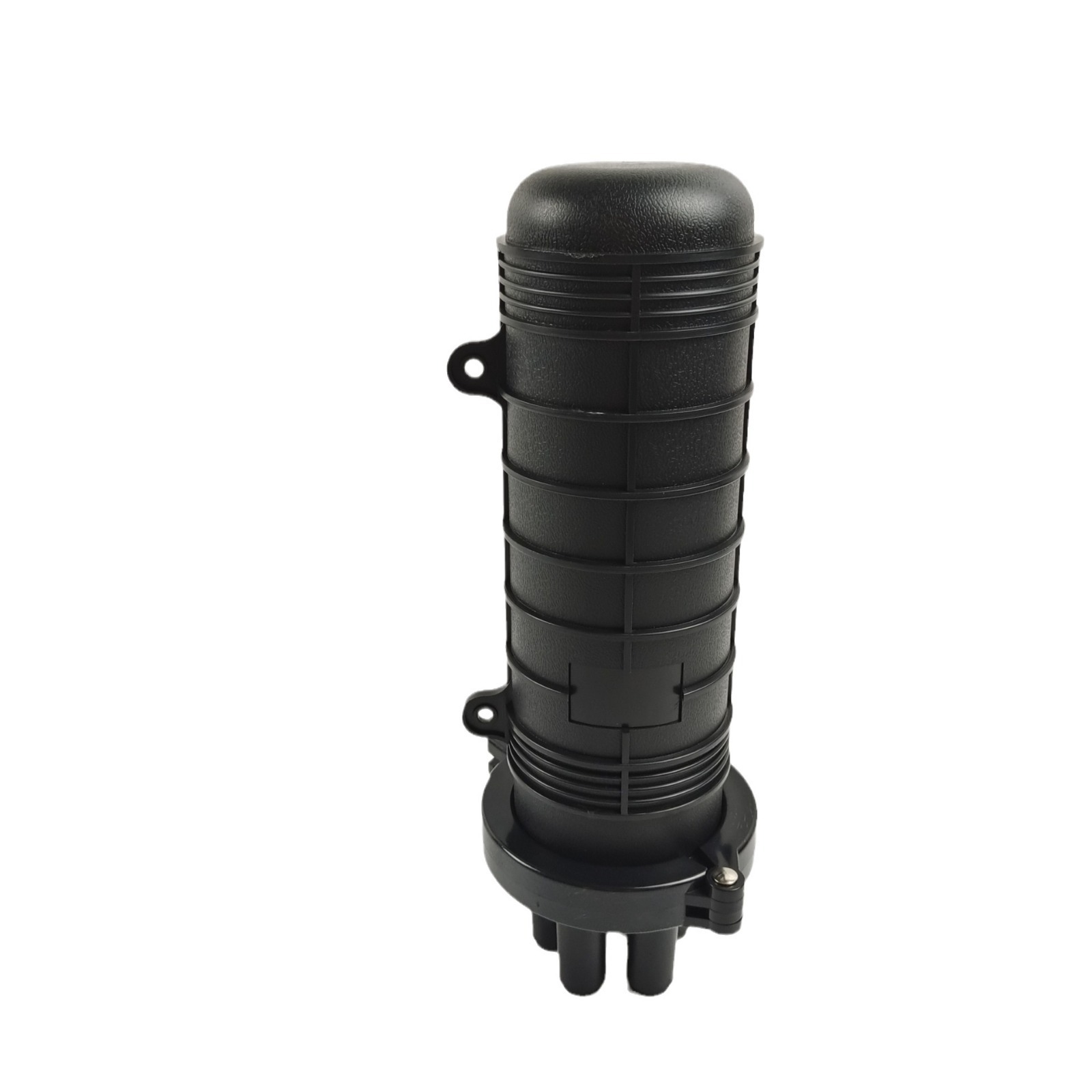

Adopts an innovative circular cap structure design, the box cover and the bottom of the box are locked and sealed with hoops, and the fiber optic cable enters and exits at one end. Has good physical and chemical properties, and is suitable for installation and use in overhead, poles, wall-mounting, manholes, pipelines, etc.
Specification:
Cable ports One elliptical port and 3 round ports
Way to install Pole-mounting / Wall-mounting / Aerial installation
Capacity of splice 24 single fiber
Sealing structure Heat shrinkable sealing structure silicon gum material
Features:

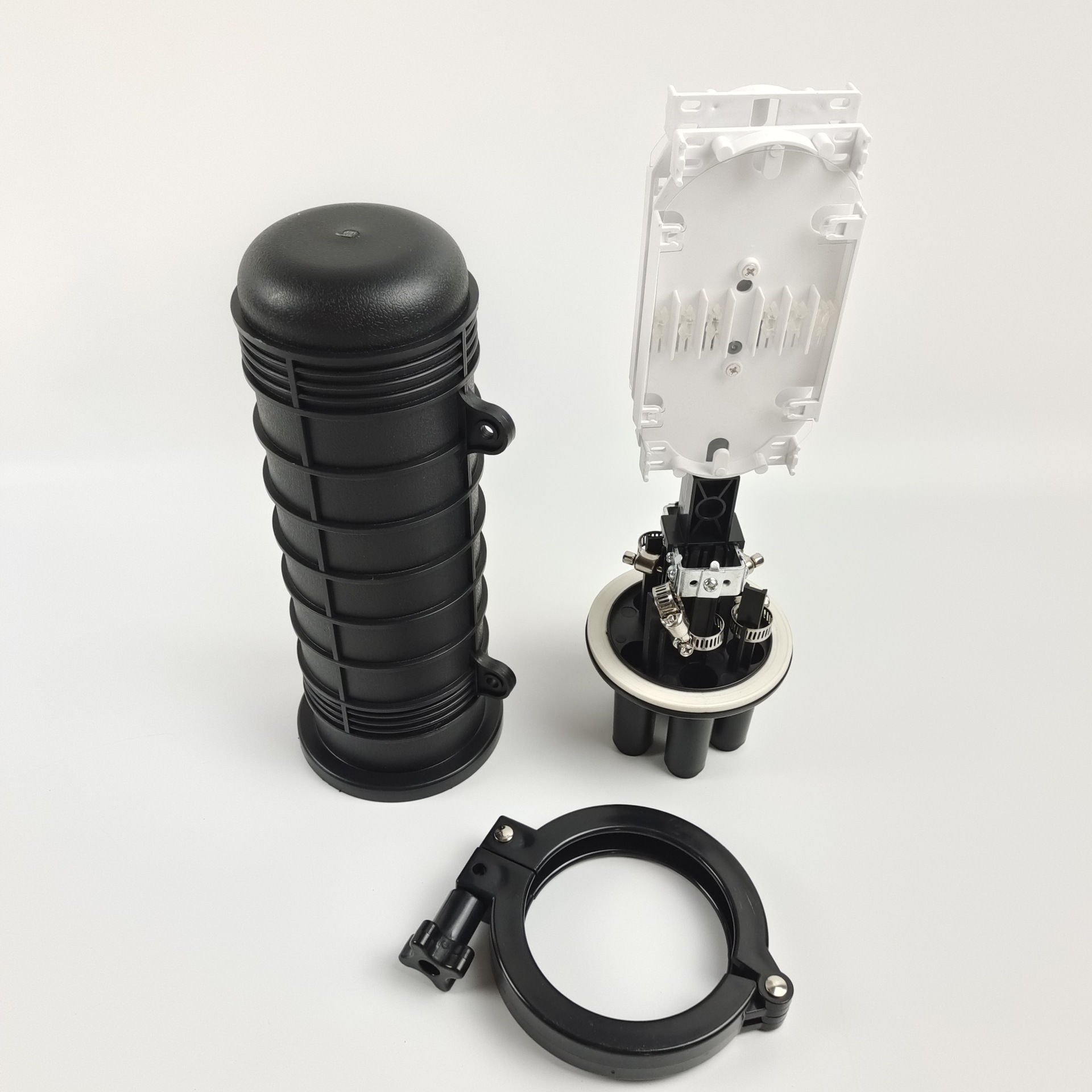

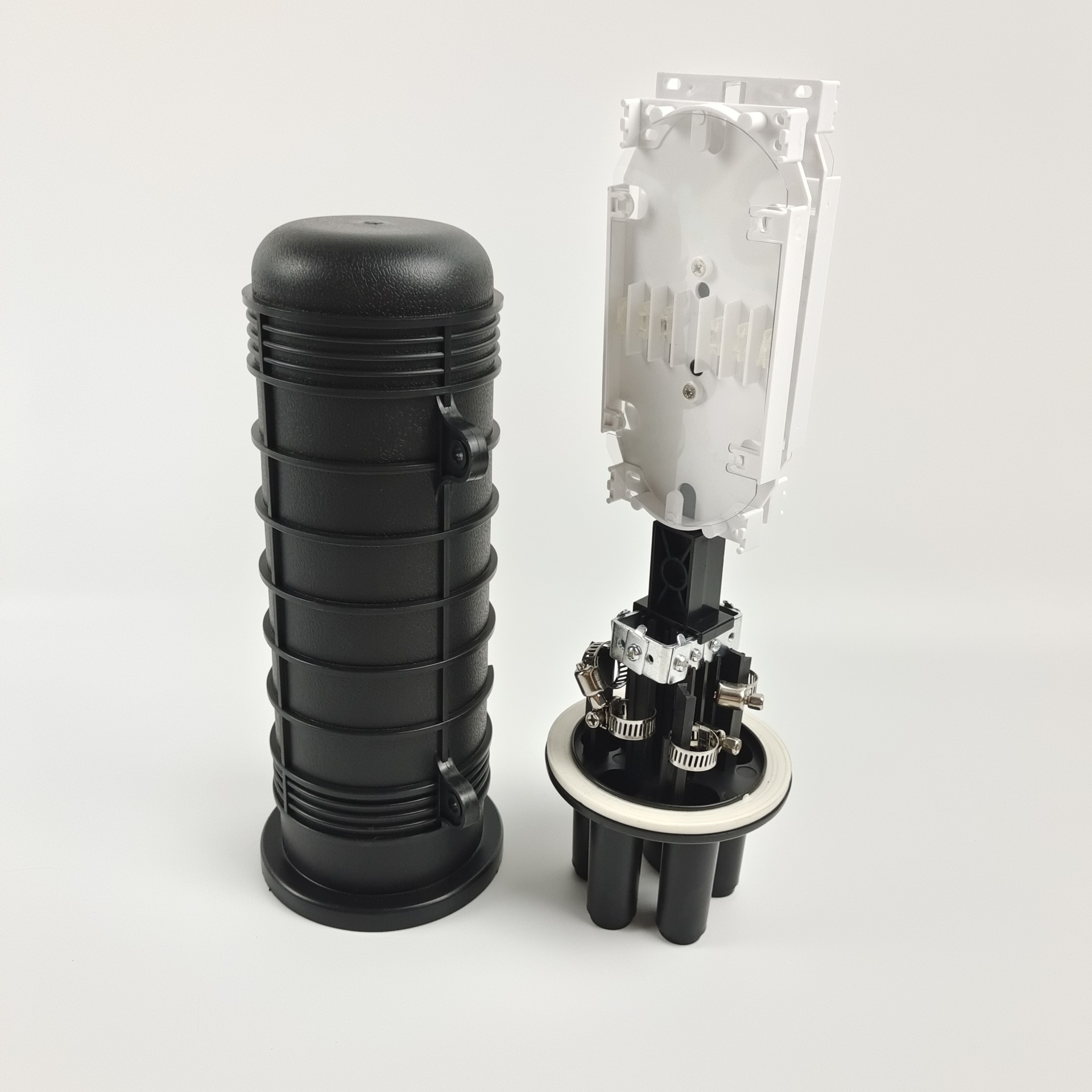

  • The fiber optic splice closure consists of cover, pedestal, splice tray, hoop, optical cable storage box.
  • The cable entry ports are sealed with heat shrinkable tube.
  • This is single fiber splice closure, it provides with one elliptical port and 4 round ports. The elliptical port can hold two stick optical cables.
  • The case body is made from imported high-intensity engineering plastics (PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
  • Equipped with air-core and installation.
Application:
1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting 0
