Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters

Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters
Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters

Grande immagine :  Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters

Dettagli:
Luogo di origine: Cina
Marca: DOWELL
Termini di pagamento e spedizione:
Quantità di ordine minimo: 200 pezzi
Tempi di consegna: 7-15 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 1000 pezzi per 7 giorni

Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters

Descrizione
Conta delle fibre: 96F Porta del cavo: 5 pezzi
Materiale: PP+ABS Impermeabile: IP68
Installation: Aerial/Pole Mount/Underground/Buried Environmental Protection: Seals against moisture, dust, water immersion
Evidenziare:

IP68 Waterproof Dome Fiber Optic Splice Closure

,

96 Fibers Fiber Optic Splice Box

,

1 In 4 Out Fiber Optic Joint Enclosure

Outdoor IP68 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters

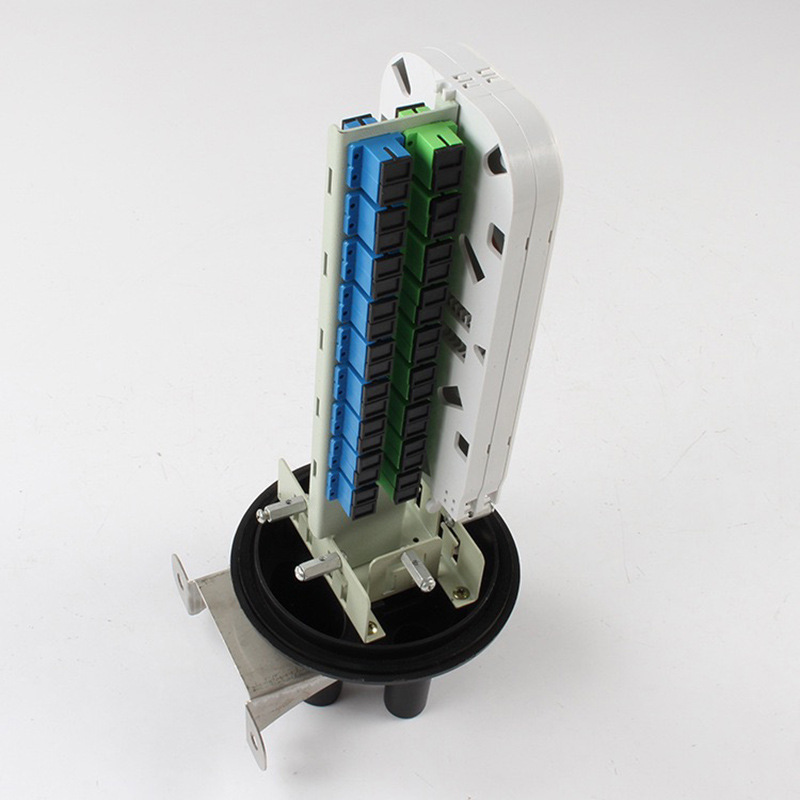

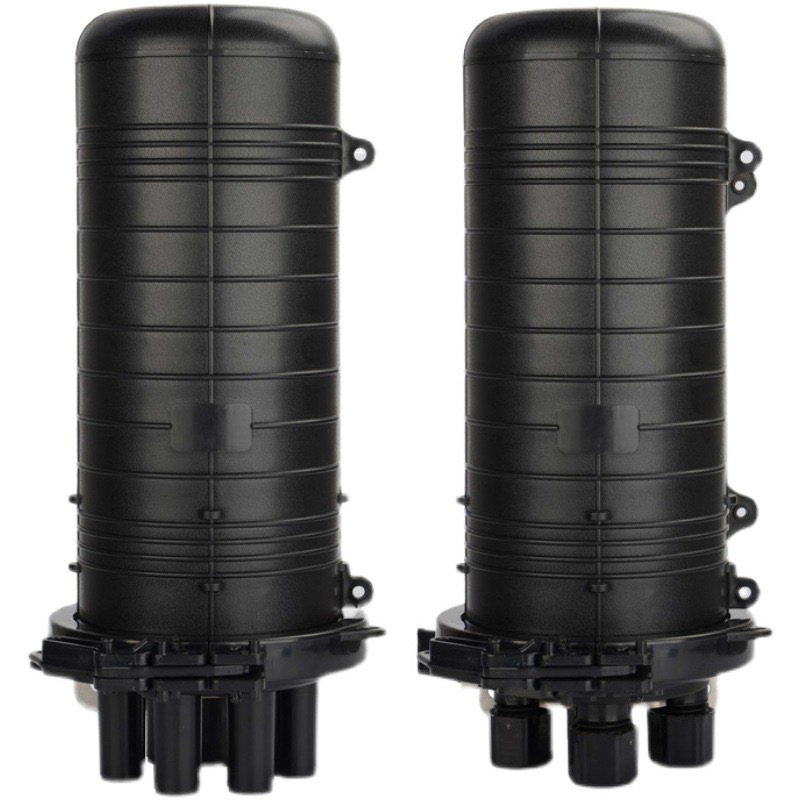

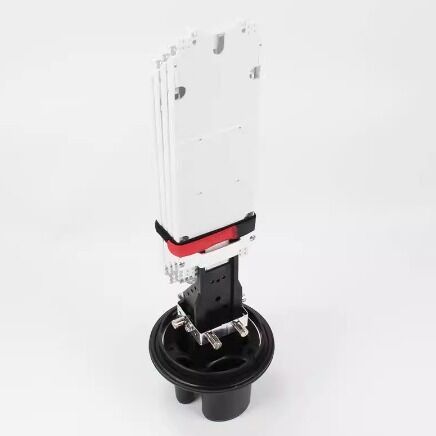

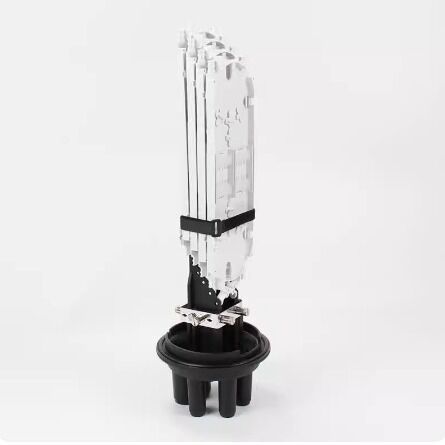

A Dome Splice Closure is a protective, dome-shaped housing designed to enclose, organize, and protect fiber optic splices and cable terminations in outdoor, aerial, underground, or buried applications. They are a fundamental component of outside plant (OSP) fiber networks.
Specification
Shape Dome/Capsule
Capacity Many cables/trays
Mounting Versatile (aerial, underground, pedestal)
Cable Ports 1 In 4 Out
Fiber Count 96F
Key Features
  • Dome-Shaped Housing (Base & Dome): Typically made of high-impact, UV-resistant plastic (like PC/ABS). The dome shape sheds water and snow easily.
  • Sealing Grommets/Gel: For cable entry/exit points, providing an airtight and watertight seal around various cable diameters.
  • Internal Skeleton/Frame: A metal or plastic chassis that holds splice trays and provides anchor points for securing cables.
  • Splice Trays: Stackable trays that organize and protect individual fusion splices or mechanical splices.
  • Grounding Kit: For bonding and grounding metallic cable strength members (if present).
  • Mounting Hardware: For attachment to poles, walls, or handholes (e.g., strapping brackets, pedestal mounts).
Applications
  • FTTH (Fiber-to-the-Home) Networks: At distribution points (DPs) to split and splice feeder cables to drop cables.
  • Long-Haul & Metro Networks: For mid-span splicing along aerial or underground routes.
  • Cable System Repairs: Restoring a broken cable.
  • Transition Points: Between aerial and underground cable sections.
Outdoor IP68 Waterproof 96 Fibers Dome Fiber Optic Splice Closure 1 In 4 Out With Adapters 0
